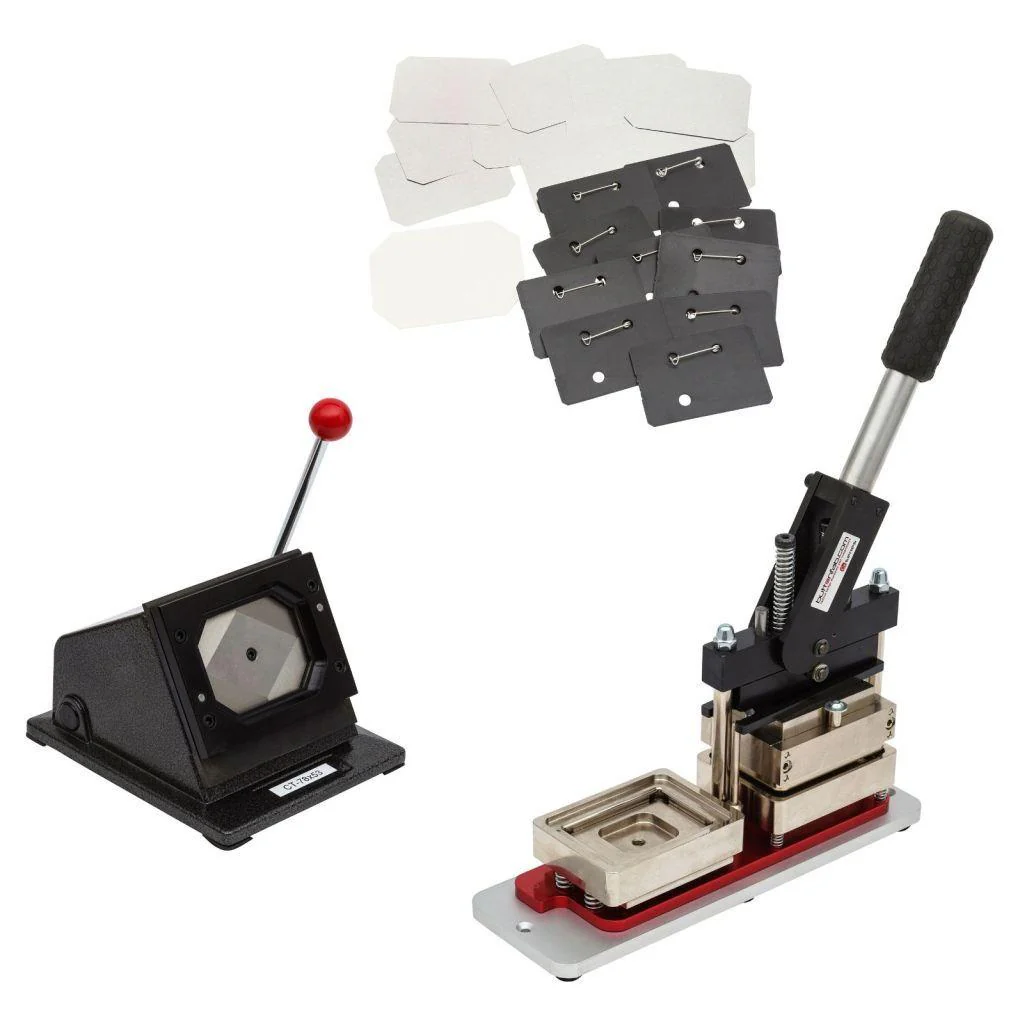

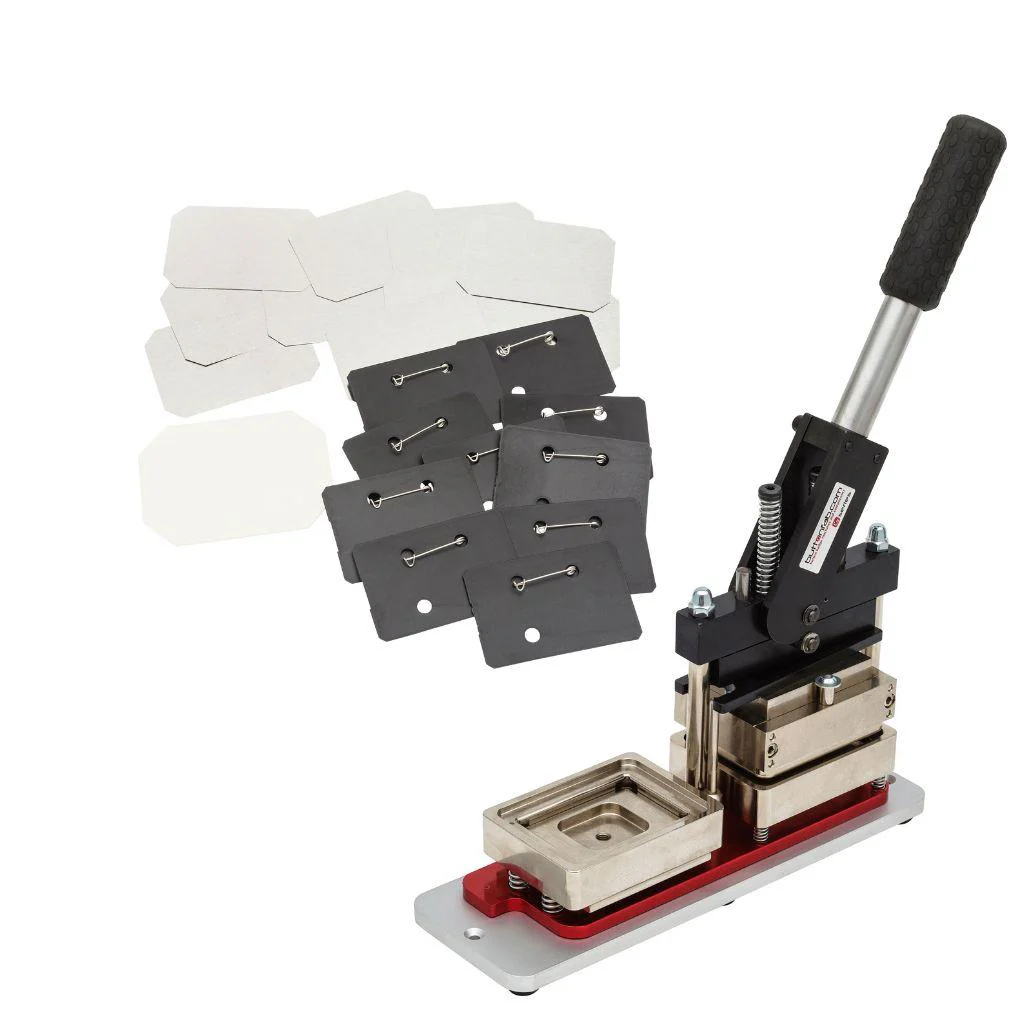

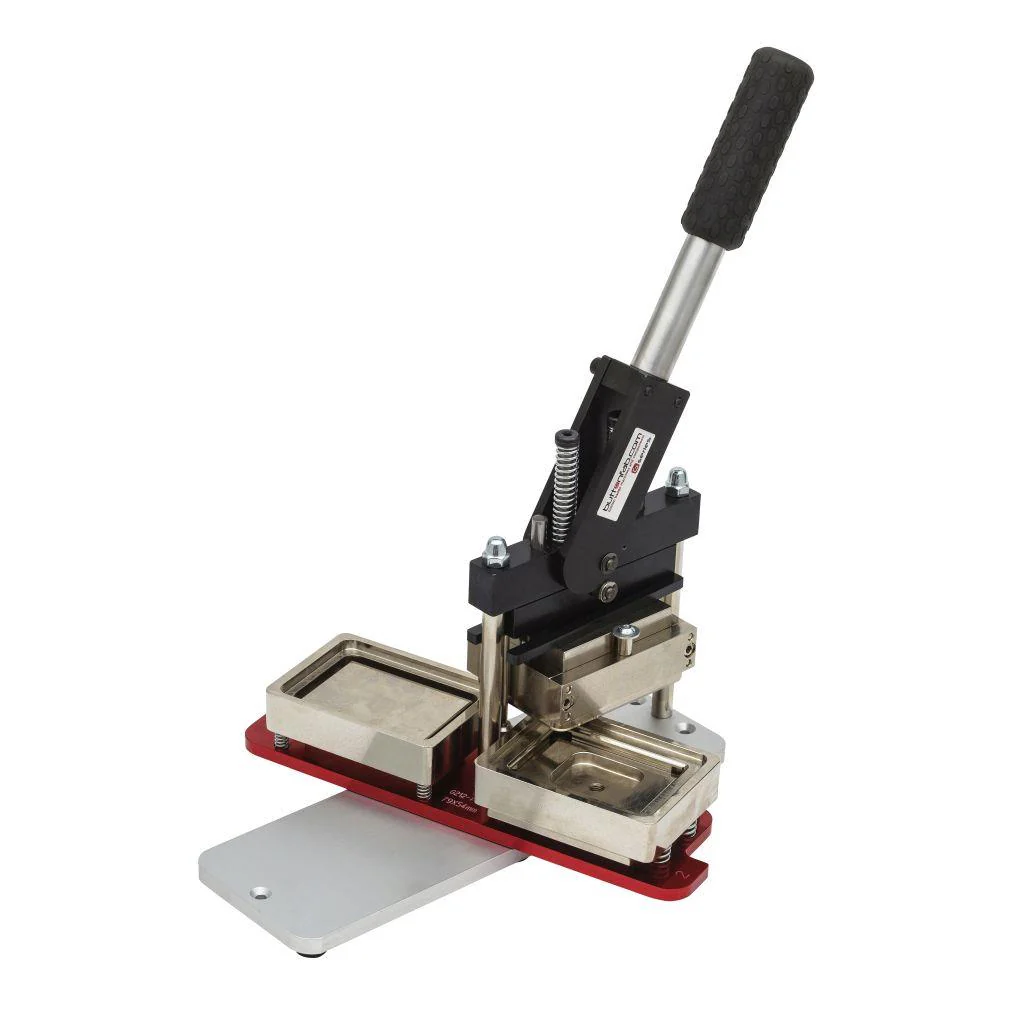

79 x 54mm Rectangular G Series Badge Machine - Includes 100 Free Pin Back Components

Produces professional button badges very quickly. Easy to use machine that comes with full operating instructions including template sizes.

Our machines are also capable of making other products, dependant upon size of badge machine chosen. Products/components available include button pin badges, button fridge magnets, button pocket mirrors, button bottle openers and button safety badges. Please note: each different size will need their own machine.

Technical Information and Dimensions

• Rectangular badge and magnet machine

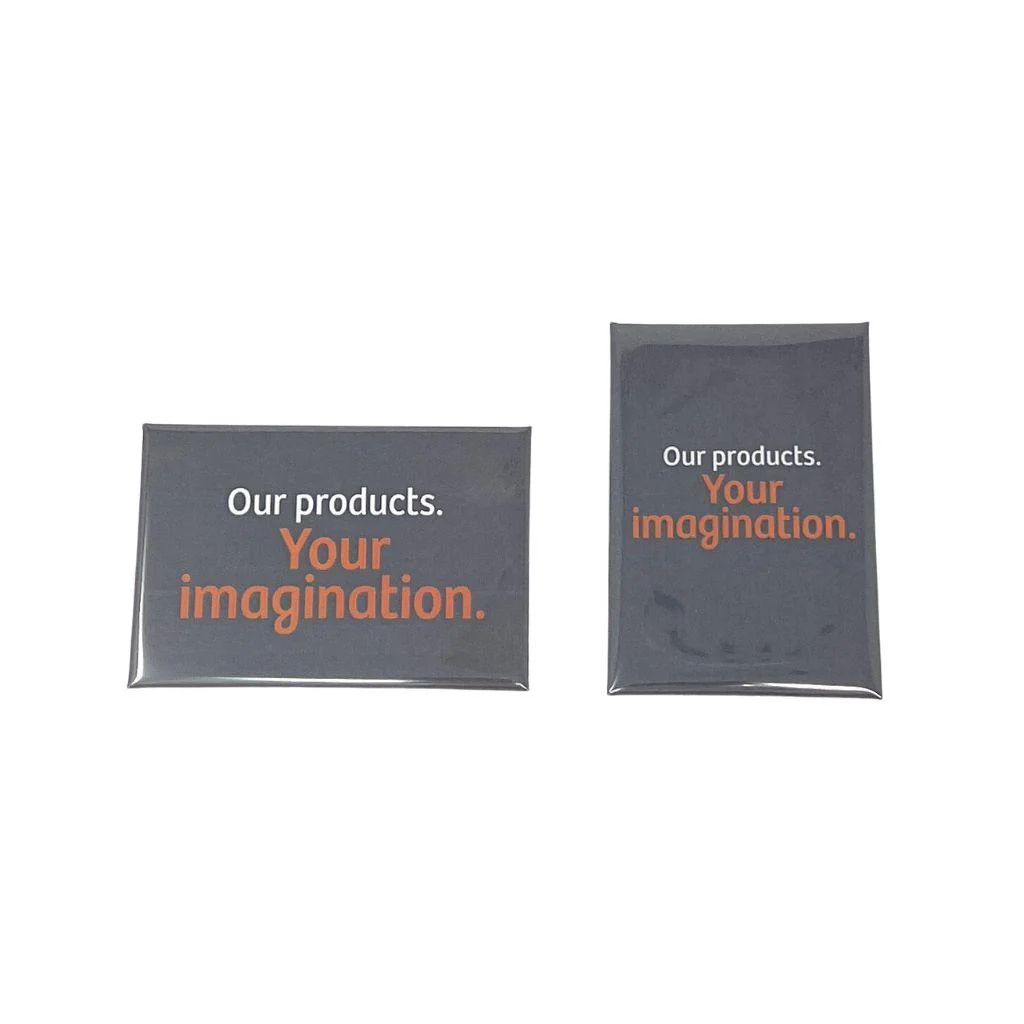

• Creates 79 x 54mm vertical and horizontal pin back badges

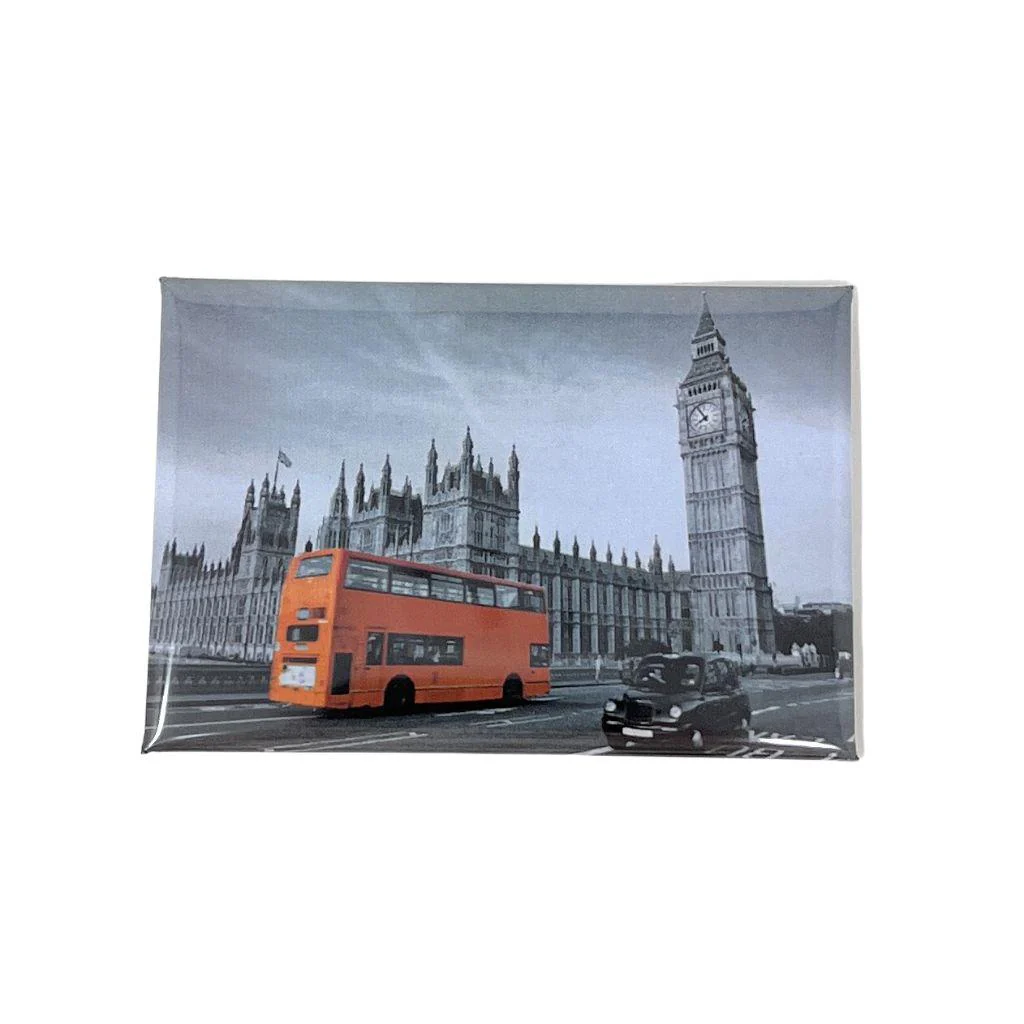

• Creates 79 x 54mm souvenir fridge magnets
• Cushioned handle
• Automatic change
• Revolving plate
• Two non-interchangeable moulds
• Easy pull-down action and fast swing track operation

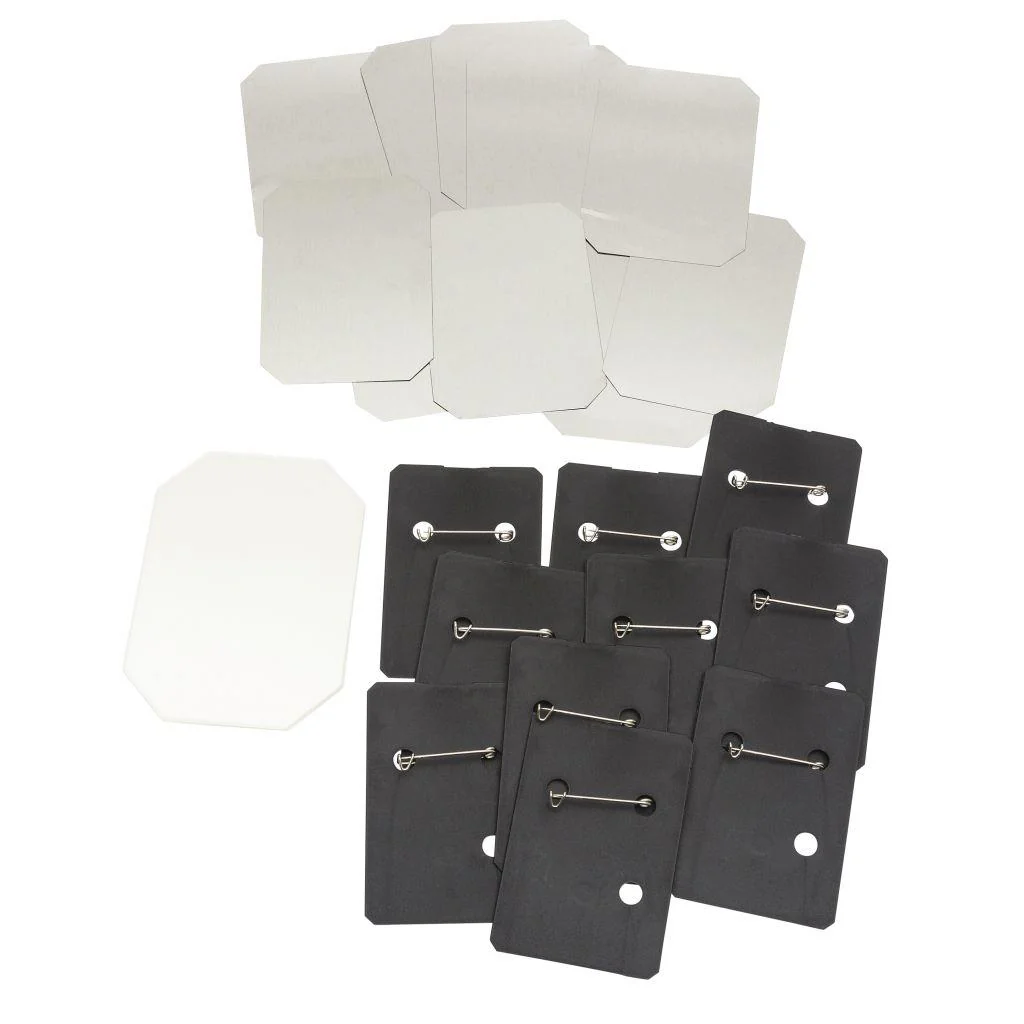

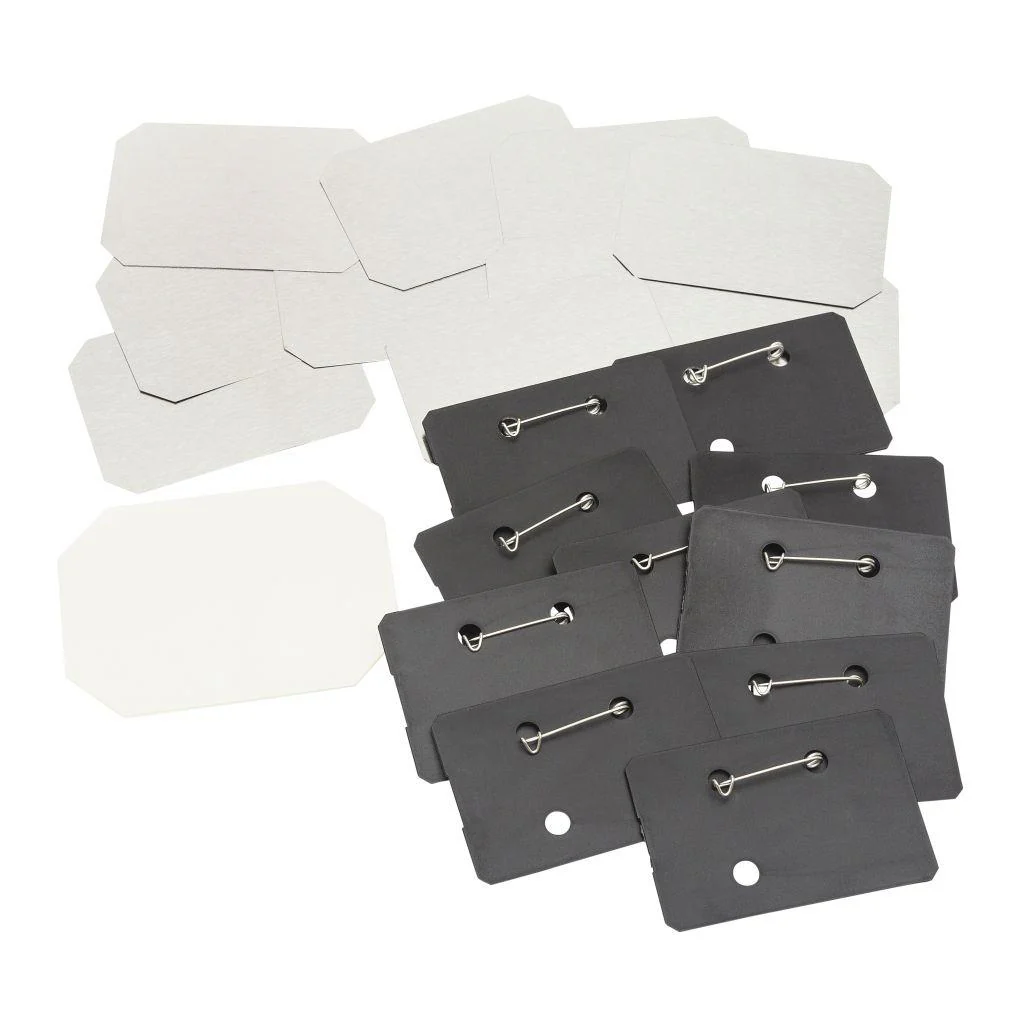

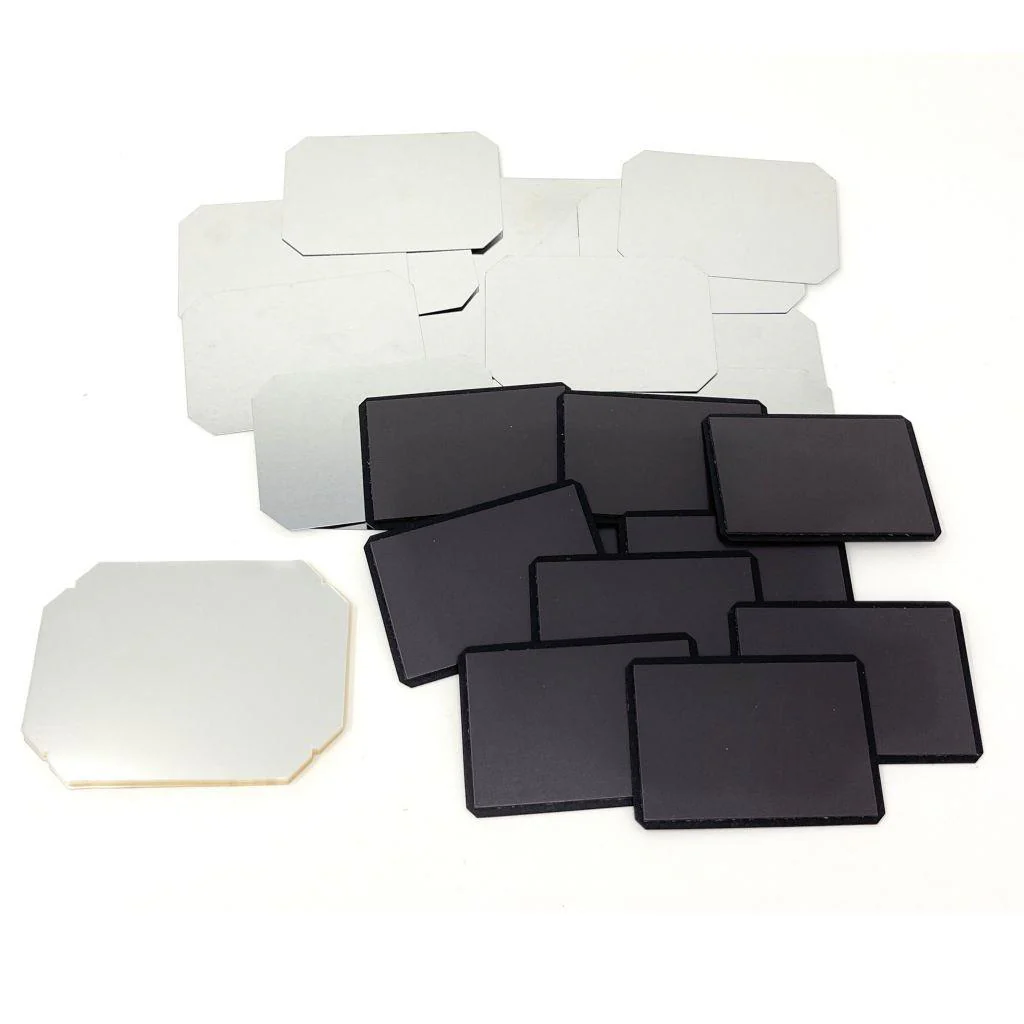

• Components for machine available to purchase separately
• Approximate dimensions of machine 315 x 100 x 255mm

Assembly Instructions

• Remove the machine from packaging, position and screw lever handle into machine
• Prepare components needed for production (these are to be purchased separately)

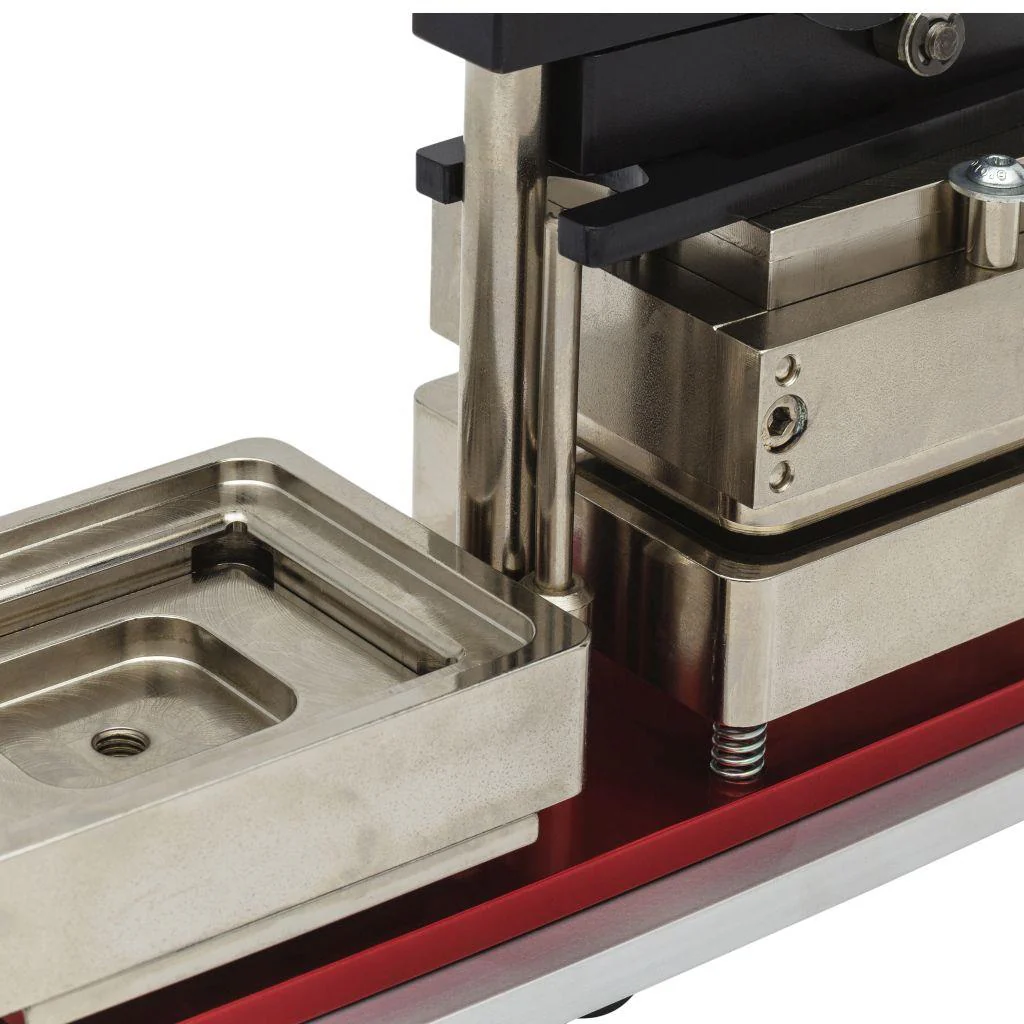

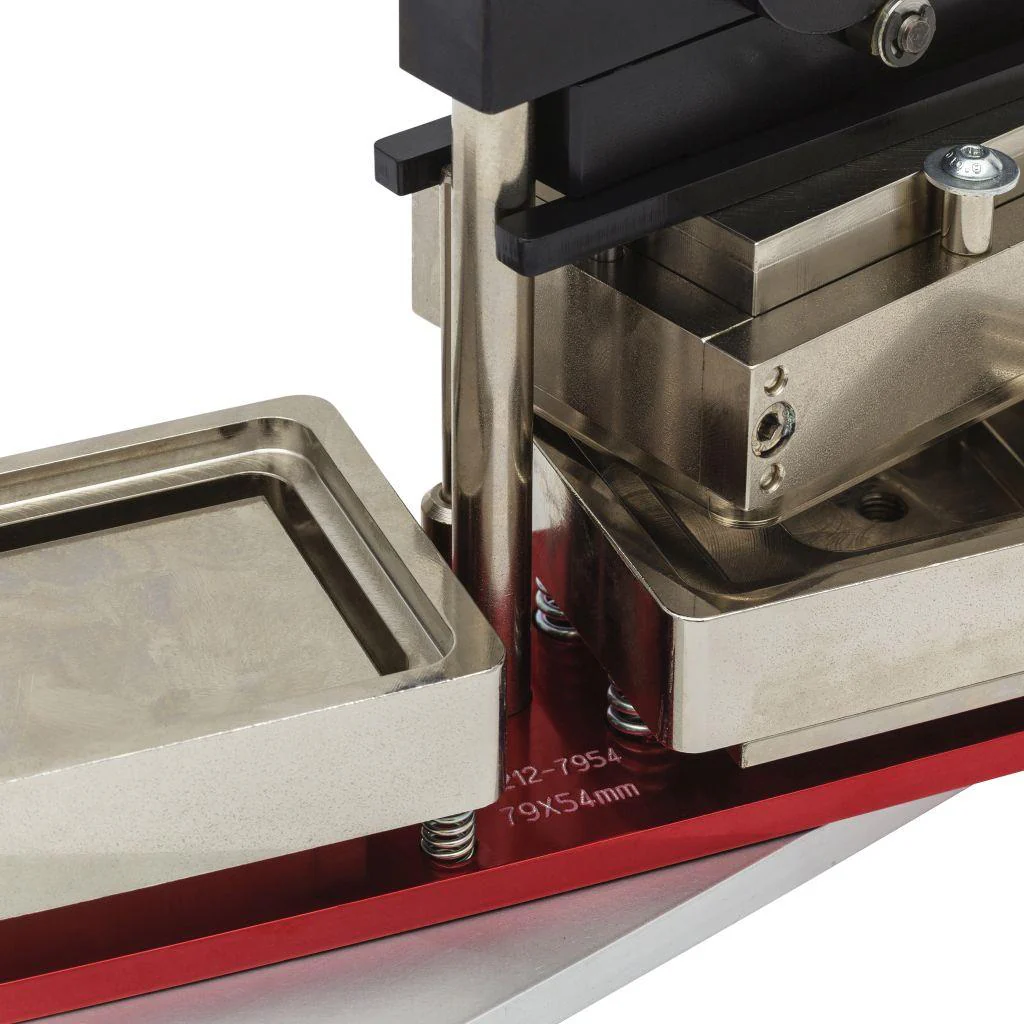

• Moulds are fixed to the revolving plate and are marked 1 and 2
• Place mould number 1 in front of you
• Place the front plate into the rectangular mould
• Place your cut to size artwork over the front plate
• Place the plastic mylar on top of the artwork
• Revolve the plate clockwise until mould 2 is in front of you and pull lever down to close the mould
• Place the back component into mould 2 needle facing down for pins
• Revolve the mould clockwise again, pull the lever down and press
• Revolve moulds and remove finished badge
